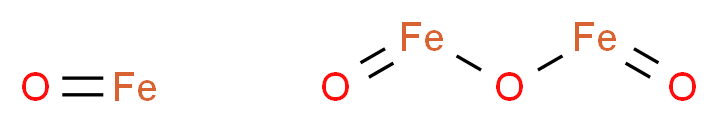

1317-61-9 分子结构
点击图片或这里关闭

oxo[(oxoferrio)oxy]iron; oxoiron

ChemBase编号:141067
分子式:Fe3O4
平均质量:231.5326
单一同位素质量:231.78447098
SMILES和InChIs

SMILES:
O=[Fe].O=[Fe]O[Fe]=O
Canonical SMILES:
O=[Fe]O[Fe]=O.[Fe]=O
InChI:
InChI=1S/3Fe.4O
InChIKey:
SZVJSHCCFOBDDC-UHFFFAOYSA-N

引用这个纪录

CBID:141067 http://www.chembase.cn/molecule-141067.html

Collapse All Expand All

名称和登记号

名称和登记号

名称 登记号
IUPAC标准名
oxo[(oxoferrio)oxy]iron; oxoiron
IUPAC传统名
ferric oxide; iron oxide
别名
氧化铁(II,III)
磁性氧化铁纳米晶体
磁铁矿
超顺磁氧化铁纳米粒子
氧化铁磁性纳米粒子 溶液
Iron(II,III) oxide
Magnetic iron oxide nanocrystals
Magnetite
Superparamagnetic iron oxide nanoparticles
Iron oxide(II,III), magnetic nanoparticles solution
CAS号
1317-61-9
EC号
215-277-5
MDL号
MFCD00011010
PubChem SID
162235302
24874003
24882829
24858770
PubChem CID
16211978

理论计算性质

理论计算性质

JChem
质子受体 质子供体
LogD (pH = 5.5) 0.3684  LogD (pH = 7.4) 0.3684
Log P 0.3684  摩尔折射率 4.236 cm3
极化性 8.774179 Å3 极化表面积 43.37 Å2
可自由旋转的化学键 里宾斯基五规则 true

分子性质

分子性质

理化性质 安全信息 产品相关信息 生物活性(PubChem)
外观
nanopowder expand 查看数据来源
powder expand 查看数据来源
solution expand 查看数据来源
spherical expand 查看数据来源
熔点
1538 °C(lit.) expand 查看数据来源
闪点
>104 °C expand 查看数据来源
>110 °C expand 查看数据来源
>219.2 °F expand 查看数据来源
>230 °F expand 查看数据来源
39.2 °F expand 查看数据来源
4 °C expand 查看数据来源
44.6 °F expand 查看数据来源
7 °C expand 查看数据来源
密度
0.865 g/mL at 25 °C expand 查看数据来源
1.00 g/mL at 25 °C expand 查看数据来源
4.8-5.1 g/mL at 25 °C(lit.) expand 查看数据来源
磁化强度
>20 emu/gat 4500Oe expand 查看数据来源
>20 emu/gat room temp. under 4500 Oe expand 查看数据来源
>25 emu/gat 4500Oe expand 查看数据来源
>45 emu/g (at ambient temperature under 4500 Oe) expand 查看数据来源
>45 emu/gat 4500Oe expand 查看数据来源
≥30 emu/g (at ambient temperature under 4500 Oe) expand 查看数据来源
欧盟危险性物质标志
易燃性(Flammable) 易燃性(Flammable) (F) expand 查看数据来源
刺激性(Irritant) 刺激性(Irritant) (Xi) expand 查看数据来源
有害性(Harmful) 有害性(Harmful) (Xn) expand 查看数据来源
联合国危险货物编号
1294 expand 查看数据来源
MSDS下载
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
德国WGK号
2 expand 查看数据来源
3 expand 查看数据来源
联合国危险货物等级
3 expand 查看数据来源
联合国危险货物包装类别(PG)
2 expand 查看数据来源
危险公开号
36/37/38 expand 查看数据来源
63-11-38-48/20-65-67 expand 查看数据来源
安全公开号
16-36/37-62 expand 查看数据来源
22-26-37/39 expand 查看数据来源
26-36/37/39 expand 查看数据来源
GHS危险品标识
GHS02 expand 查看数据来源
GHS07 expand 查看数据来源
GHS08 expand 查看数据来源
GHS警示词
Danger expand 查看数据来源
Warning expand 查看数据来源
GHS危险声明
H225-H304-H315-H336-H361d-H373 expand 查看数据来源
H315-H319-H335 expand 查看数据来源
GHS警示性声明
P210-P261-P281-P301 + P310-P331 expand 查看数据来源
P261-P305 + P351 + P338 expand 查看数据来源
个人保护装置
dust mask type N95 (US), Eyeshields, Gloves expand 查看数据来源
Eyeshields, Faceshields, full-face respirator (US), Gloves, multi-purpose combination respirator cartridge (US), type ABEK (EN14387) respirator filter expand 查看数据来源
RID/ADR
UN 1294 3/PG 2 expand 查看数据来源
纯度
≥98% trace metals basis expand 查看数据来源
95% expand 查看数据来源
99.99% trace metals basis expand 查看数据来源
浓度
5 mg/mL in H2O expand 查看数据来源
5 mg/mL in toluene expand 查看数据来源
级别
CP expand 查看数据来源
颗粒大小
<5 μm expand 查看数据来源
<50 nm (TEM) expand 查看数据来源
18-22 nm expand 查看数据来源
18-22 nm (TEM) expand 查看数据来源
4-6 nm (TEM) expand 查看数据来源
5 nm±1 nm ( TEM; conforms) expand 查看数据来源
9-11 nm (TEM) expand 查看数据来源
9-11 nm (TEM; conforms) expand 查看数据来源
比表面积
BET surf. area >60 m2/g expand 查看数据来源
堆密度
0.84 g/mL expand 查看数据来源
平均颗粒大小
10 nm expand 查看数据来源
20 nm expand 查看数据来源
5 nm expand 查看数据来源
Empirical Formula (Hill Notation)
Fe3O4 expand 查看数据来源

详细说明

详细说明

Sigma Aldrich Sigma Aldrich
Sigma Aldrich -  725331 external link
General description
Contains <1.0% modified short chain polyethylene glycol (PEG) stabilizing ligands
浓度:5mg/ml,包括纳米晶体与配体的总重量。
包装
5 mL in glass bottle
Sigma Aldrich -  310069 external link
包装
2.5 kg in glass bottle
25, 500 g in poly bottle
Sigma Aldrich -  518158 external link
包装
10, 50 g in poly bottle
Sigma Aldrich -  700304 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
General description
Contains <1.0% oleic acid stabilizing ligands
浓度:5mg/ml,包括纳米晶体与配体的总重量。
包装
5 mL in glass bottle
Sigma Aldrich -  637106 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
包装
25, 100, 250 g in glass bottle
Protocols & Applications
Chemical Synthesis of Monodisperse Magnetic Nanoparticles
Sigma Aldrich -  700312 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
General description
Contains <1.0% oleic acid stabilizing ligands
浓度:5mg/ml,包括纳米晶体与配体的总重量。
包装
5 mL in glass bottle
Sigma Aldrich -  725366 external link
General description
Contains <1.0% modified short chain polyethylene glycol (PEG) stabilizing ligands
浓度:5mg/ml,包括纳米晶体与配体的总重量。
包装
5 mL in glass bottle
Sigma Aldrich -  700320 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
General description
Contains <1.0% oleic acid stabilizing ligands
浓度:5mg/ml,包括纳米晶体与配体的总重量。
包装
5 mL in glass bottle
Sigma Aldrich -  725358 external link
General description
Contains <1.0% modified short chain polyethylene glycol (PEG) stabilizing ligands
浓度:5mg/ml,包括纳米晶体与配体的总重量。
包装
5 mL in glass bottle
