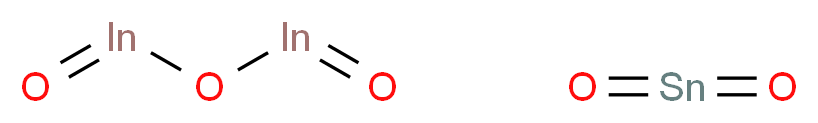

50926-11-9 分子结构
点击图片或这里关闭

oxo[(oxoindiganyl)oxy]indigane; stannanedione

ChemBase编号:135638
分子式:In2O5Sn
平均质量:428.334
单一同位素质量:429.6845231
SMILES和InChIs

SMILES:
O=[In]O[In]=O.O=[Sn]=O
Canonical SMILES:
O=[In]O[In]=O.O=[Sn]=O
InChI:
InChI=1S/2In.5O.Sn
InChIKey:
LNNWKAUHKIHCKO-UHFFFAOYSA-N

引用这个纪录

CBID:135638 http://www.chembase.cn/molecule-135638.html

Collapse All Expand All

名称和登记号

名称和登记号

名称 登记号
IUPAC标准名
oxo[(oxoindiganyl)oxy]indigane; stannanedione
IUPAC传统名
oxo[(oxoindiganyl)oxy]indigane; tin oxide
别名
ITO 涂覆的聚对苯二甲酸乙二醇酯薄膜
氧化铟锡涂覆的 PET
氧化铟锡分散体
氧化铟锡
ITO 涂覆的玻片
氧化铟锡涂覆的铝硅酸盐玻片
ITO 涂覆的矩形玻片
氧化铟锡涂覆的矩形玻片
ITO 涂覆的正方形玻片
氧化铟锡涂覆的正方形玻片
ITO-PET
Polyethylene terephthalate film, ITO coated
Indium tin oxide coated PET
Indium tin oxide, dispersion
Indium tin oxide
ITO coated slide
Indium tin oxide coated boro-aluminosilicate glass slide
ITO
ITO coated slide, rectangular
Indium tin oxide coated glass slide, rectangular
ITO coated slide, square
Indium tin oxide coated glass slide, square
CAS号
50926-11-9
MDL号
MFCD00171662
PubChem SID
24872921
24878790
162229911
24880854
24880855
PubChem CID
16217324

理论计算性质

理论计算性质

JChem
质子受体 质子供体
LogD (pH = 5.5) -0.4316  LogD (pH = 7.4) -0.4316
Log P -0.4316  摩尔折射率 4.236 cm3
极化性 12.827038 Å3 极化表面积 43.37 Å2
可自由旋转的化学键 里宾斯基五规则 true

分子性质

分子性质

理化性质 安全信息 产品相关信息 生物活性(PubChem)
外观
dispersion expand 查看数据来源
nanopowder expand 查看数据来源
sheet expand 查看数据来源
熔点
1910 °C(lit.) expand 查看数据来源
沸点
82 °C expand 查看数据来源
闪点
14 °C expand 查看数据来源
57.2 °F expand 查看数据来源
密度
1.04 g/mL at 25 °C expand 查看数据来源
1.2 g/mL at 25 °C(lit.) expand 查看数据来源
折射率
n20/D 1.517 expand 查看数据来源
n20/D 1.517(lit.) expand 查看数据来源
n20/D 1.5290-1.5460(lit.) expand 查看数据来源
转变温度
softening point 975 °C expand 查看数据来源
透光率
>78% expand 查看数据来源
>83% expand 查看数据来源
>84% expand 查看数据来源
>85% expand 查看数据来源
>87% expand 查看数据来源
550 nm, >77.0% expand 查看数据来源
550 nm, >79% expand 查看数据来源
550 nm, >86% expand 查看数据来源
84% (nominal at 550nm) expand 查看数据来源
86% (nominal at 550nm) expand 查看数据来源
欧盟危险性物质标志
易燃性(Flammable) 易燃性(Flammable) (F) expand 查看数据来源
刺激性(Irritant) 刺激性(Irritant) (Xi) expand 查看数据来源
联合国危险货物编号
1219 expand 查看数据来源
MSDS下载
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
下载链接 expand 查看数据来源
德国WGK号
3 expand 查看数据来源
联合国危险货物等级
3 expand 查看数据来源
联合国危险货物包装类别(PG)
2 expand 查看数据来源
危险公开号
11-36/37/38-67 expand 查看数据来源
36/37/38 expand 查看数据来源
安全公开号
16-26 expand 查看数据来源
26 expand 查看数据来源
GHS危险品标识
GHS02 expand 查看数据来源
GHS07 expand 查看数据来源
GHS警示词
Danger expand 查看数据来源
Warning expand 查看数据来源
GHS危险声明
H225-H315-H319-H335 + H336 expand 查看数据来源
H315-H319-H335 expand 查看数据来源
GHS警示性声明
P210-P261-P305 + P351 + P338 expand 查看数据来源
P261-P305 + P351 + P338 expand 查看数据来源
个人保护装置
dust mask type N95 (US), Eyeshields, Gloves expand 查看数据来源
Eyeshields, Faceshields, full-face respirator (US), Gloves, multi-purpose combination respirator cartridge (US), type ABEK (EN14387) respirator filter expand 查看数据来源
RID/ADR
UN 1219 3/PG 2 expand 查看数据来源
保存温度
-20°C expand 查看数据来源
纯度
≥99.99% trace metals basis expand 查看数据来源
浓度
30 wt. % in isopropanol expand 查看数据来源
颗粒大小
<100 nm (DLS) expand 查看数据来源
<50 nm expand 查看数据来源
-325 mesh expand 查看数据来源
主要成分
In2O3, 90% expand 查看数据来源
SnO2, 10% expand 查看数据来源
包装
pack of 10 slides expand 查看数据来源
pack of 25 slides expand 查看数据来源
简要说明
slide expand 查看数据来源
比表面积
27 m2/g expand 查看数据来源
L × W × D
1 ft × 1 ft × 5 mil expand 查看数据来源
表面电阻
100 Ω/sq expand 查看数据来源
15-25 Ω/sq expand 查看数据来源
200 Ω/sq expand 查看数据来源
250 Ω/sq expand 查看数据来源
300 Ω/sq expand 查看数据来源
30-60 Ω/sq expand 查看数据来源
35 Ω/sq expand 查看数据来源
45 Ω/sq expand 查看数据来源
5-15 Ω/sq expand 查看数据来源
60 Ω/sq expand 查看数据来源
70-100 Ω/sq expand 查看数据来源
8-12 Ω/sq expand 查看数据来源
长 × 宽 × 厚度
1 ft × 1 ft × 5 mil expand 查看数据来源
25 mm × 25 mm × 1.1 mm expand 查看数据来源
75 mm × 25 mm × 1.1 mm expand 查看数据来源
线性分子式
In2O3 · (SnO2)x expand 查看数据来源

详细说明

详细说明

Sigma Aldrich Sigma Aldrich
Sigma Aldrich -  639281 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
Application
在不损坏 ITO 涂层的情况下,曲率半径最大为 75mm。
Features and Benefits
聚酯薄膜产品包含溅镀的 ITO,并具有与玻璃基板相似的透射和电阻特性。
General description
ITO 涂层由一层薄而透明,并且容易剥落的薄膜所保护。
包装
1, 5 ea in rigid mailer
Quantity
每包 5 片,每片规格 1 英尺×1 英尺
Physical properties
ITO 涂层厚度为 750Å。
Sigma Aldrich -  544876 external link
包装
25 g in poly bottle
5 g in glass bottle
Sigma Aldrich -  636908 external link
Physical properties
ITO 涂层厚度为 300-600Å。
Sigma Aldrich -  703184 external link
Substrates
基板:未抛光的浮法玻璃,经过 SiO2 钝化 (200-300Å)
Sigma Aldrich -  576352 external link
包装
10, 25 pkg in poly tube
Physical properties
ITO 涂层厚度为 150-300Å。 在 300°C 下保持 30 分钟或更长时间,电阻可增至高达 375Ω。
Sigma Aldrich -  749796 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
Features and Benefits
These polyester film products comprise of sputtered ITO, and exhibit transmittance and resistance characteristics similar to those of glass substrates.
聚酯薄膜产品包含溅镀的 ITO,并具有与玻璃基板相似的透射和电阻特性。
General description
The ITO coating is protected by a thin, transparent film, that can be easily peeled off.
包装
1, 5 ea in rigid mailer
Physical properties
Thickness of ITO coating is 1000 Å
Sigma Aldrich -  749745 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
Features and Benefits
These polyester film products comprise of sputtered ITO, and exhibit transmittance and resistance characteristics similar to those of glass substrates.
聚酯薄膜产品包含溅镀的 ITO,并具有与玻璃基板相似的透射和电阻特性。
General description
The ITO coating is protected by a thin, transparent film, that can be easily peeled off.
包装
1, 5 ea in rigid mailer
Physical properties
Thickness of ITO coating is 1000 Å
Sigma Aldrich -  578274 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
包装
10, 25 pkg in poly tube
Physical properties
ITO 涂层厚度为 1200-1600Å。 在 300°C 下保持 30 分钟或更长时间,电阻可增至高达 30Ω。
Sigma Aldrich -  700460 external link
包装
25, 100 g in glass bottle
Sigma Aldrich -  636916 external link
包装
10, 25 pkg in poly tube
Physical properties
ITO 涂层厚度为 600-1000Å。
Sigma Aldrich -  639311 external link
Application
在不损坏 ITO 涂层的情况下,曲率半径最大为 75mm。
Features and Benefits
聚酯薄膜产品包含溅镀的 ITO,并具有与玻璃基板相似的透射和电阻特性。
Quantity
每包 5 片,每片规格 1 英尺×1 英尺
Physical properties
ITO 涂层厚度为 1200Å。
ITO 涂层由一层薄而透明,并且容易剥落的薄膜所保护。
Sigma Aldrich -  703176 external link
General description
基板:未抛光的浮法玻璃,经过 SiO2 钝化 (200-300Å)
包装
10 pkg in poly bag
Physical properties
ITO 涂层厚度为 150-300Å。
Sigma Aldrich -  703192 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
General description
基板:未抛光的浮法玻璃,经过 SiO2 钝化 (200-300Å)
Physical properties
ITO 涂层厚度为 1,200-1,600Å
Sigma Aldrich -  749761 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
Features and Benefits
These polyester film products comprise of sputtered ITO, and exhibit transmittance and resistance characteristics similar to those of glass substrates.
聚酯薄膜产品包含溅镀的 ITO,并具有与玻璃基板相似的透射和电阻特性。
General description
The ITO coating is protected by a thin, transparent film, that can be easily peeled off.
包装
1, 5 ea in rigid mailer
Physical properties
Thickness of ITO coating is 1000 Å
Sigma Aldrich -  668559 external link
Features and Benefits
聚酯薄膜产品包含溅镀的 ITO,并具有与玻璃基板相似的透射和电阻特性。
Quantity
每包 5 片,每片规格 1 英尺×1 英尺
Sigma Aldrich -  494682 external link
包装
25, 100 g in poly bottle
Sigma Aldrich -  576360 external link
General description
典型成分:55.0% SiO2、7.0% B2O3、10.4% Al2O3、21.0% CaO 和 1.0% Na2O。玻片的应变点为 666°C。
包装
10, 25 pkg in poly bag
Sigma Aldrich -  639303 external link
Frequently Asked Questions
Live Chat and Frequently Asked Questions are available for this Product.
Application
在不损坏 ITO 涂层的情况下,曲率半径最大为 75mm。
Features and Benefits
聚酯薄膜产品包含溅镀的 ITO,并具有与玻璃基板相似的透射和电阻特性。
General description
ITO 涂层由一层薄而透明,并且容易剥落的薄膜所保护。
包装
1, 5 ea in rigid mailer
Quantity
每包 5 片,每片规格 1 英尺×1 英尺
Physical properties
ITO 涂层厚度为 1000Å。
